The Air Compressor - The Heart of a Dental Surgery

The air compressor is probably one of the least glamorous items in the dental surgery but it could be argued that it is one of the most valuable. Supplying air to the handpieces, 3-in-1 or scaler it is the most important investment the practice will make and is vital to the running of the surgery.

Having established that an oil free compressor with dryer is the best option for your practice, the chart below helps you to select the optimum compressor for your practice. The decision on whether you need a standard compressor or a low noise model in an accoustic cabinet needs careful consideration. Location of the compressor is an important factor in the decision making process. In a basement or separate room away from patients, the standard "open" model will meet your needs. If the compressor is to be sited in the surgery or an area where noise levels are critical, then select the appropriate model from the LN range.

An Emergency Back Up compressor is very worthwhile considering. For whatever reason that the main compressor is not available, or during servicing, this very economic standby compressor will ensure continuity of air supply.

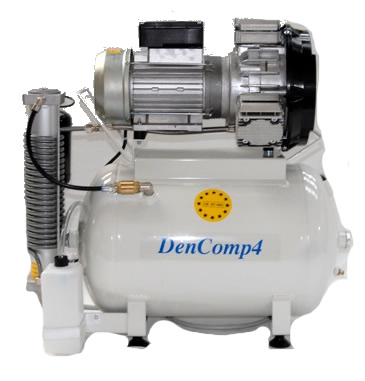

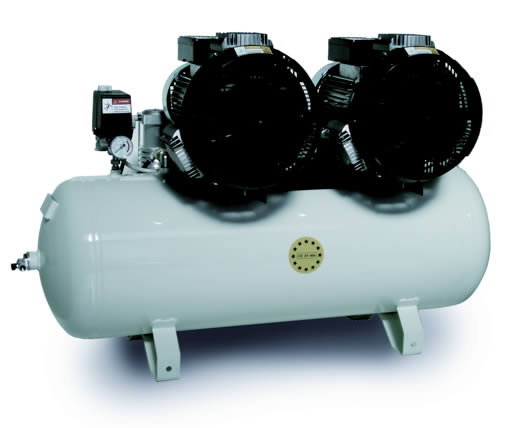

Oil Free Compressors with Dryer

	No. of Surgeries	Motor	Ltrs/Min (FAD @ 5 bar)	Receiver (lts)	dB(A)	Dimension (L x D x H)	Weight (kgs)	click pictures below to enlarge
DenComp 2	1 or 2	1.4	100	24	66	41x51x59	32
DenComp 3	3	1.5	150	50	67	75x40x75	60
DenComp 4	4	2.5	225	50	67.5	75x40x75	62
DenComp 6	6	2x1.5	300	100	69.5	120x62x75	118
DenComp 8	8	2x2.5	450	100	70	120x40x75	124
Dencomp 12	12	3x2.5	675	100	73	120x62x75	160

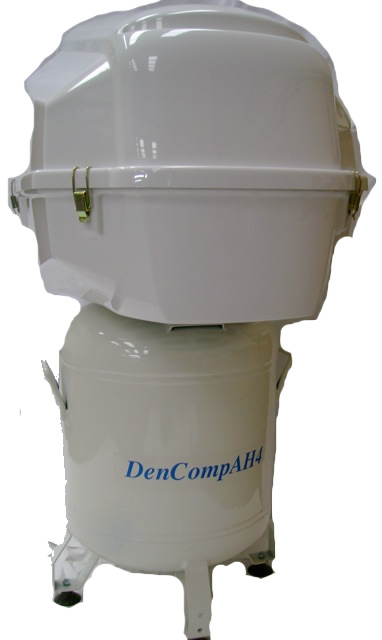

Low Noise Oil Free Compressors with Dryers and Acoustic Hoods

	No. of Surgeries	Motor	Ltrs/Min (FAD @ 5 bar)	Receiver (ltrs)	dB(A)	Dimension (L x D x H)	Weight (kgs)	click picture below to enlarge
DenComp AH3	3	1.5	150	50	60	55x72x100	55
DenComp AH4	4	2.5	225	50	60.5	55x72x100	61
DenComp AH6	6	2x1.5	300	100	62	120x72x95	122
DenComp AH8	8	2x2.5	450	100	63	120x72x95	136

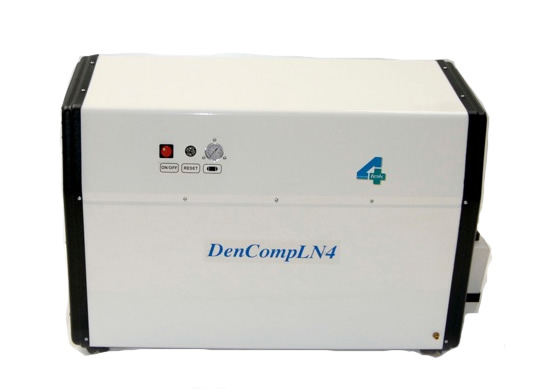

Low Noise Oil Free Compressors with Dryer in Acoustic Cabinet

	No. of Surgeries	Motor	Ltrs/Min (FAD @ 5 bar)	Receiver	dB(A)	Dimension (L x D x H)	Weight (kgs)	click picture below to enlarge
DenComp LN2	2	1.4	100	30	57	80x40x57	72
DenComp LN3	3	1.5	150	30	57	92x40x57	76
DenComp LN4	4	2.5	225	30	57	92x40x57	85

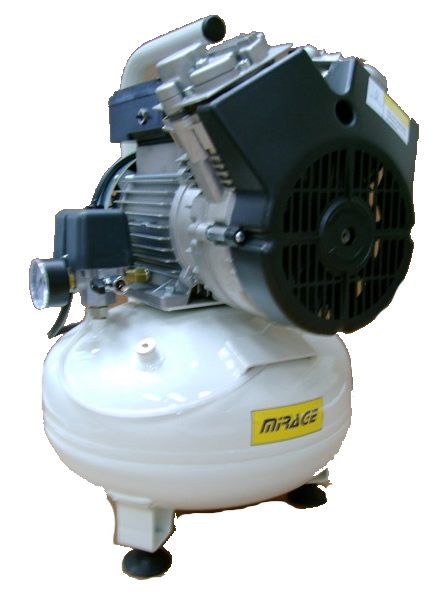

Emergency Backup Compressor

Standby	No. of Surgeries	Motor	Ltrs/Min (FAD @ 5 bar)	Receiver	dB(A)	Dimension (L x D x H)	Weight (kgs)	click picture below to enlarge
Mirage 130/15	3	1.5	100	15	66	40x43x54	23

Filtration & Regulation
